SH11000 Gasoline Generator
-Powerful Gasoline Engine
Honda GX630 21.1PS Air-Cooled OHV V-Twin Engine.

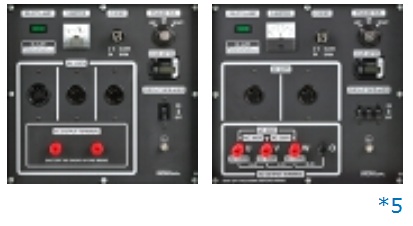

-Control Panel *5
Easy to see and easy operation.
Standard features: V-meter, Hour-meter,
Pilot Lamp.
-Automatic Voltage Regulator(AVR)
ELEMAX's AVR smooths power output fluctuations to enable operation of
sensitive electronic equipment.
-4-Wheel portability is standard
| Models |
SH11000 |
SHT11500 |
| Type |
R |
LD |
R |
S |
| Generator |
Frequency (Hz) |
50 |
60 |
50 |
60 |
| Type |
2-pole, Field Rotating Type |
| Voltage Regulation System |
AVR |
| Phase |
Single |
Three |
| AC Output |
Rated Power (KVA) |
50Hz |
8.5 |
- |
10.0 |
- |
| 60Hz |
- |
9.5 |
- |
11.5 |
| Maximum Power (KVA) |
50Hz |
10.0 |
- |
11.5 |
- |
| 60Hz |
- |
11.0 |
- |
13.0 |
| Rated Voltage (V) |
220 |
120/240 |
220/380 |
| Rated Power Factor (cosφ) |
1.0 |
0.8 |
| Engine |
Maker |
HONDA |
| Model |
GX630 |
| Displacement (CC) |
688 |
| Maximum Output (PS) |
21.1 (3,600rpm) |
| Ignition System |
Transistor |
| Oil Alert System |
YES |
| Starting System |
Electric Starter |
| Others |
L X W X H (mm) |
924 X 665 X 636 (804 with wheels) |
| Dry Weight (kg) |
without wheel |
158 |
| with wheel |
165 |
Fuel Tank Capacity
(liters) |
38 |
Sound Level
[dB(A)/7m] |
50Hz |
74 |
| 60Hz |
| Continuous Operating Hours (hr) |
50Hz |
7.0 |
- |
7.0 |
- |
| 60Hz |
- |
6.2 |
- |
6.2 |
| Cooling System |
Forced Air |
| Engine Oil Refill Capacity (liters) |
1.8 (with replace a filter) / 1.5 (without replace a filter) |
